Switching DC power supplies are designed for wide usage in industry even in the most difficult conditions e.g. cement works, ironworks, energetics, telecommunications, railways etc.

Power of standard power supplies is in range from 1,2 W to 22 kW, special power supplies to 500 kW. Efficient input circuit protects the power supply against operating overvoltage from mains and optimally designed filter inhibits the interference infiltration to mains. Efficiency course depending on load of power supply output circuit is in wide range almost constant.

Power supplies permanently tolerate load limiting state: no-load run and short-circuit run. They are characterized also by very good dynamic properties, high stabilization coefficient and very low output voltage ripple.

• switching frequency to 65 kHz
• efficiency up to 95%
• insulation strength input - output 4kVac
• output voltage ripple max. 1%
• N2.2 power supplies have the failure signalling (output undervoltage) by voltage-free contact
• the possibility of parallel connection of power supplies
• continuous no-load run and short-circuit protection
• simple installation also on the DIN rail

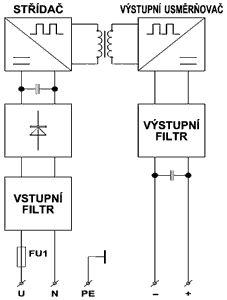

Block diagram of switching power supply	N6	N5

• any output voltage from 2,8V to 600V DC
• any output current 0 - 200A, specially to 16kA
• input supply voltage 110V AC, 50-60Hz
• potenciometers for output voltage and current adjustment
• output voltage and current adjusting by voltage signal 0-10V or current loop 0(4)-20mA
• remote switch of power supply output
• control possibility (power supplies with microprocessor control system) of output parameters by computer through interface RS 232/485

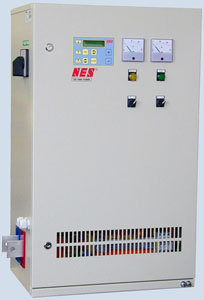

Power supply version with microprocessor control system with parameter adjusting and monitoring by control panel with LCD display on the front panel.	Power supply version with digital display with parameter by potentiometer on the panel or by voltage input (0-10V).

TECHNICAL DATA

Power supply type	Output		Input	Suitable for circuits	Dimensions / Box type, installation (W x H x D) /mm/	Weight /kg/	Input protection /A/
	Nominal current / power	Nominal voltage	Supply voltage
SZ 1 24/230 A1,5 B5	1,5A / 7,5W	5V DC	1NPE 230V ±10%50-60Hz / TN-S	SELV, PELV	35 x 75 x 102/ E2, DIN	0,15	D6A
SZ 4 24/230 A6 B5	6A / 30W				79x 125 x 100/ N1.4, DIN	0,9	D6A
SZ 0,1 24/230 B12	0,1A / 1,2W	12V DC			35 x 75 x 102/ E2, DIN	0,3	C1A
SZ 1 24/230 B12	1A / 12W				35 x 75 x 102/ E2, DIN	0,15	D6A
SZ 2 24/230 B12	2A / 24W				70 x 86 x 58/ RL2, DIN	0,35	D6A
SZ 4 24/230 A5 B12	5A / 60W				79x 125 x 100/ N1.4, DIN	0,9	D6A
SZ 10 24/230 B12	10A / 120W				120x 163 x 108/ N1.2, DIN	1,9	C10A
SZ 20 24/230.1 B12	20A / 240W				170x 230 x 170/ N2.2, DIN	6	C10A
SZ 20 24/230.1 A30 B12	30A / 360W				170x 230 x 170/ N2.2, DIN	6	C10A
SZ 0,1 24/230	0,1A / 2,4W	24V DC			35 x 75 x 102/ E2, DIN	0,3	C1A
SZ 1 24/230	1A / 24W				35 x 75 x 102/ E2, DIN	0,15	D6A
SZ 2 24/230	1,5A / 36W				70 x 86 x 58/ RL2, DIN	0,35	D6A
SZ 4 24/230	3,5A / 84W				79x 125 x 100/ N1.4, DIN	0,9	D6A
SZ 5 24/230	5A / 120W				120x 163 x 108/ N1.2, DIN	1,9	C10A
SZ 10 24/230	10A / 240W				120x 163 x 108/ N1.2, DIN	1,9	C10A
SZ 20 24/230.1	20A / 480W				170x 230 x 170/ N2.2, DIN	6	C10A
SZ 4 24/230 A1,5 B48	1,5A / 72W	48V DC	1NPE 230V ±10%50-60Hz / TN-S	SELV, PELV	79x 125 x 100/ N1.4, DIN	0,9	C10A
SZ 10 24/230.1 A5 B48	5A / 240W				120x 163 x 108/ N1.2, DIN	1,9	C10A
SZ 20 24/230.1 A10 B48	10A / 480W				170x 230 x 170/ N2.2, DIN	6	C10A
SZ 10 24/230 A2 B110	2A / 220W	110V DC		-	120x 163 x 108/ N1.2, DIN	1,9	C10A
SZ 20 24/230.1 A4 B110	4A / 440W			-	170x 230 x 170/ N2.2, DIN	6	C10A
SZ 20 24/230.1 A2 B220	2A / 440W	220V DC		-	170x 230 x 170/ N2.2, DIN	6	C10A
SZ 20 24/230 A35	35A / 840W	24V DC	1NPE 230V ±10%50-60Hz  / TN-S	-	260 x 440 x 300/ N8	15	C10A
SZ 50 24/230	50A / 1200W			SELV, PELV	260 x 490 x 480/ N3 nebo 19“ x 4HU (177) x 430 / 19“ RACK	28 (19)	C16A
SZ 50 24/400	50A / 1200W		3PEN 400V ±10% 50-60Hz / TN-S			30 (21)	C10A
SZ 100 24/400	100A / 2400W					33 (25)	C16A
SZ 50 48/400	50A / 2400W	48V DC				33 (25)	C16A
SZ 20 110/400	20A / 2200W	110V DC				32 (24)	C16A
SZ 10 220/400	10A / 2200W	220V DC				32 (24)	C16A
SZ 100 24/400 C230	100A / 2400W	24V DC	1NPE 230V ±10%50-60Hz / TN-S			35 (26)	C20A
SZ 50 48/400 C230	50A / 2400W	48V DC				34 (25)	C20A
SZ 20 110/400 C230	20A / 2200W	110V DC				32 (24)	C20A
SZ 10 220/400 C230	10A / 2200W	220V DC				32 (24)	C20A
SZ 150 24/400	150A / 3,6 kW	24V DC	3PEN 400V ±10% 50-60Hz / TN-S	-	255 x 620 x 500/ N4	45	C16A
SZ 40 110/400	40A / 4,4 kW	110V DC			255 x 620 x 500/ N4	45	C20A
SZ 100 110/400	100A / 11 kW	110V DC			600 x 800 x 350/ N5	55	C32A
SZ 100 220/400	100A / 22 kW	220V DC			600 x 1200 x 400/ N6	70	80AgG
Other values of input and output voltage and output current on demand

EXTERNAL CONNECTION OF POWER SUPPLIES

SZ 0,1 24/230	SZ 1 24/230	SZ 2 24/230
SZ 4 24/230	SZ 20 24/230.1	SZ 5 24/230, SZ 10 24/230

Ambient conditions according to IEC 60 364-3 (ČSN 33 2000-3)
Ambient temperature	AB7 ( -25 °C to + 55 °C )
Altitude	AC1 ( to 2000 m above sea level )
Water occurrence	AD1 ( insignificant )
Occurrence of foreign matters	AE1 ( insignificant )
Occurrence of corrodents or pollutants	AF1 ( insignificant )
Vibrations	AH2 ( middle )
EMC	ČSN EN 50081-1: 1998, ČSN EN 50082-2: 1999
Storage temperature range	from -25 to +40°C, no longer than 24 h to +70°C

Catalogue list - switching DC power supplies for industrial applications
